Feature-Length Production Power

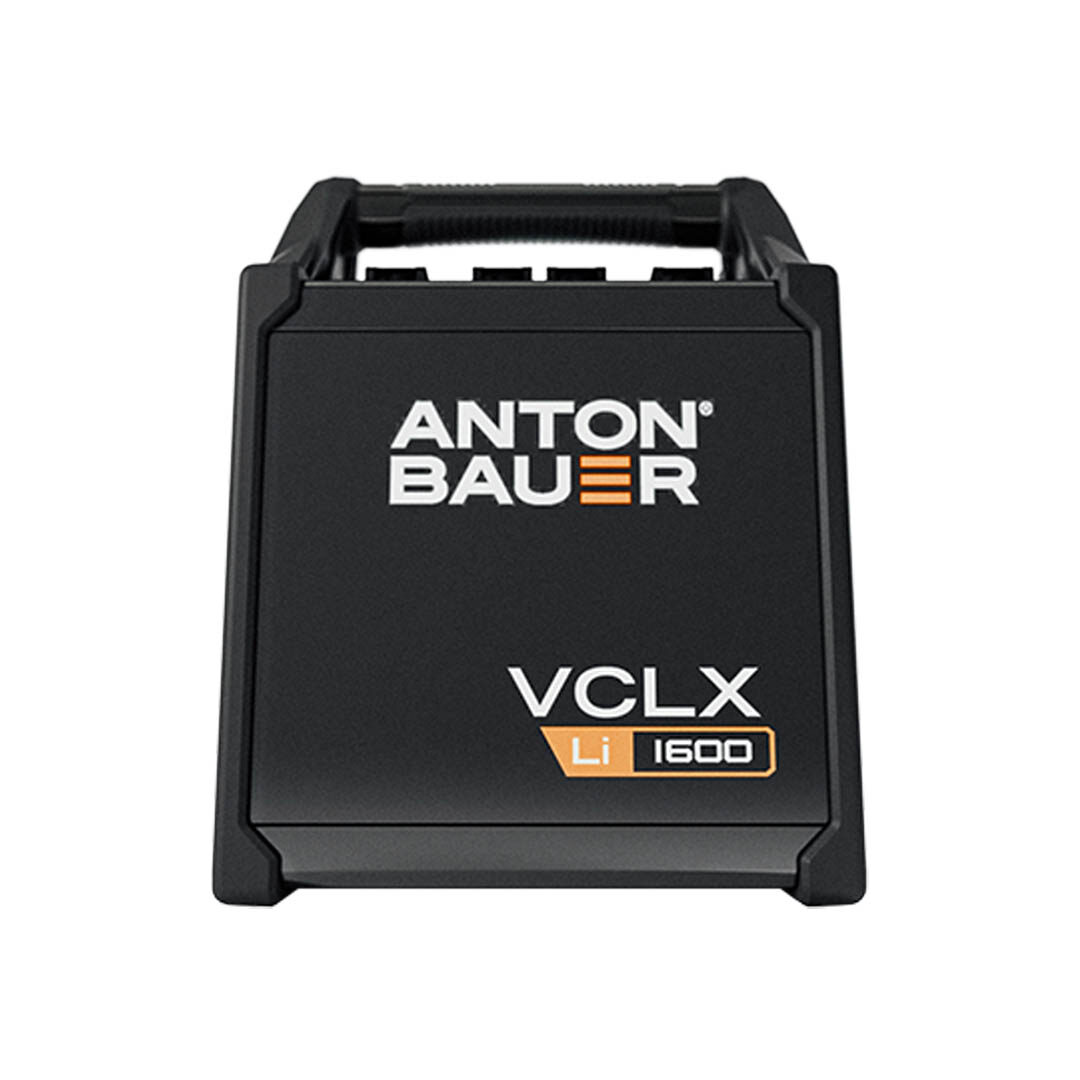

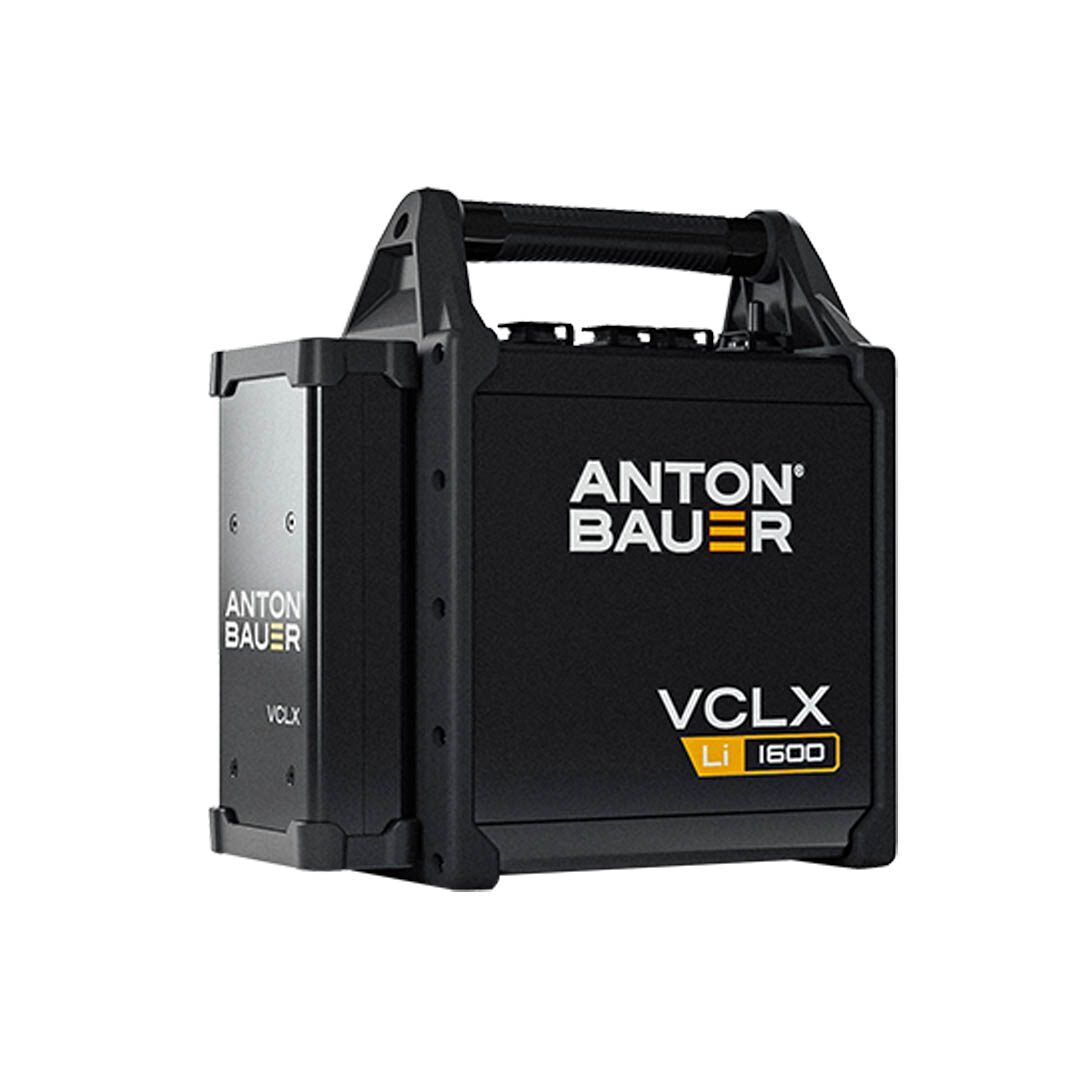

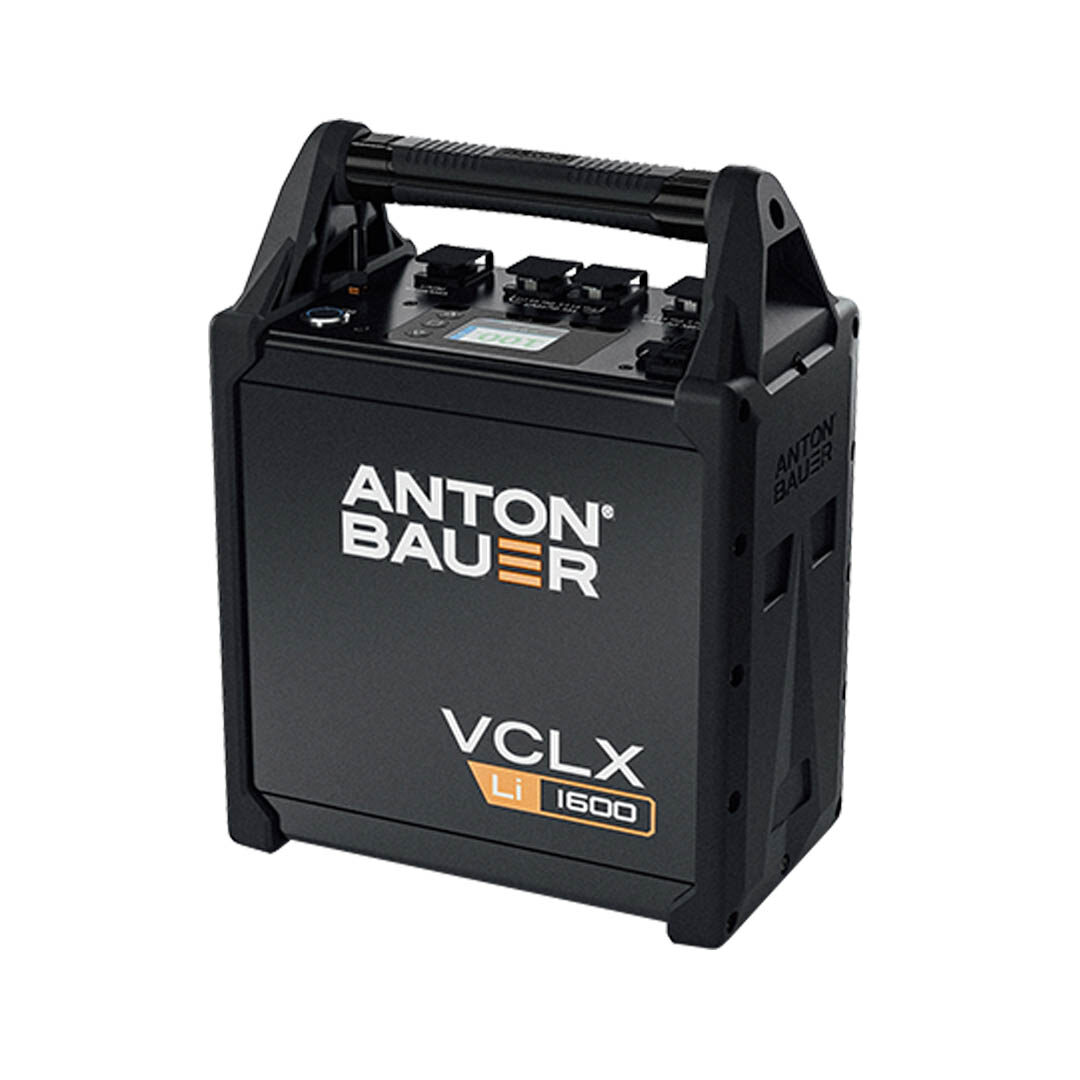

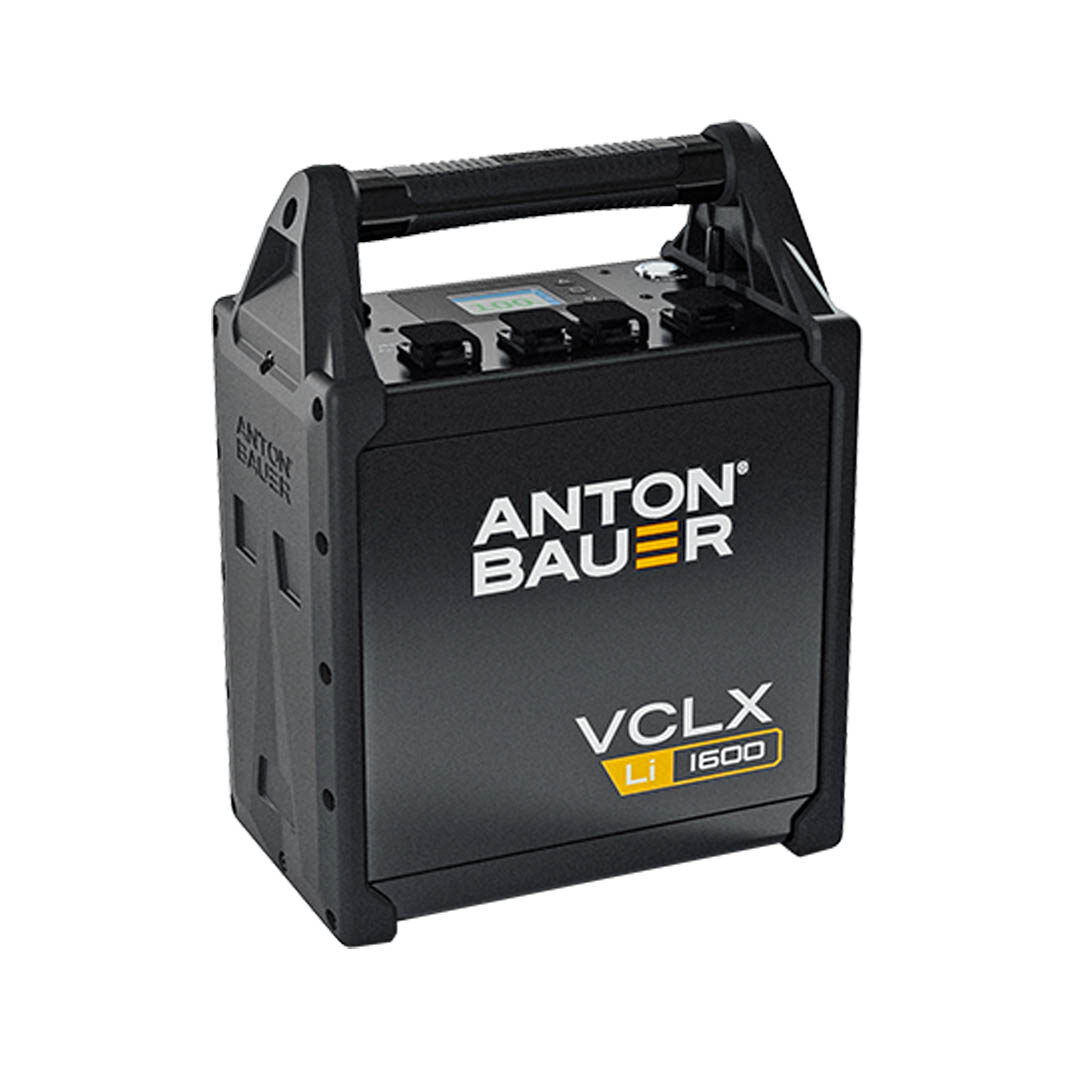

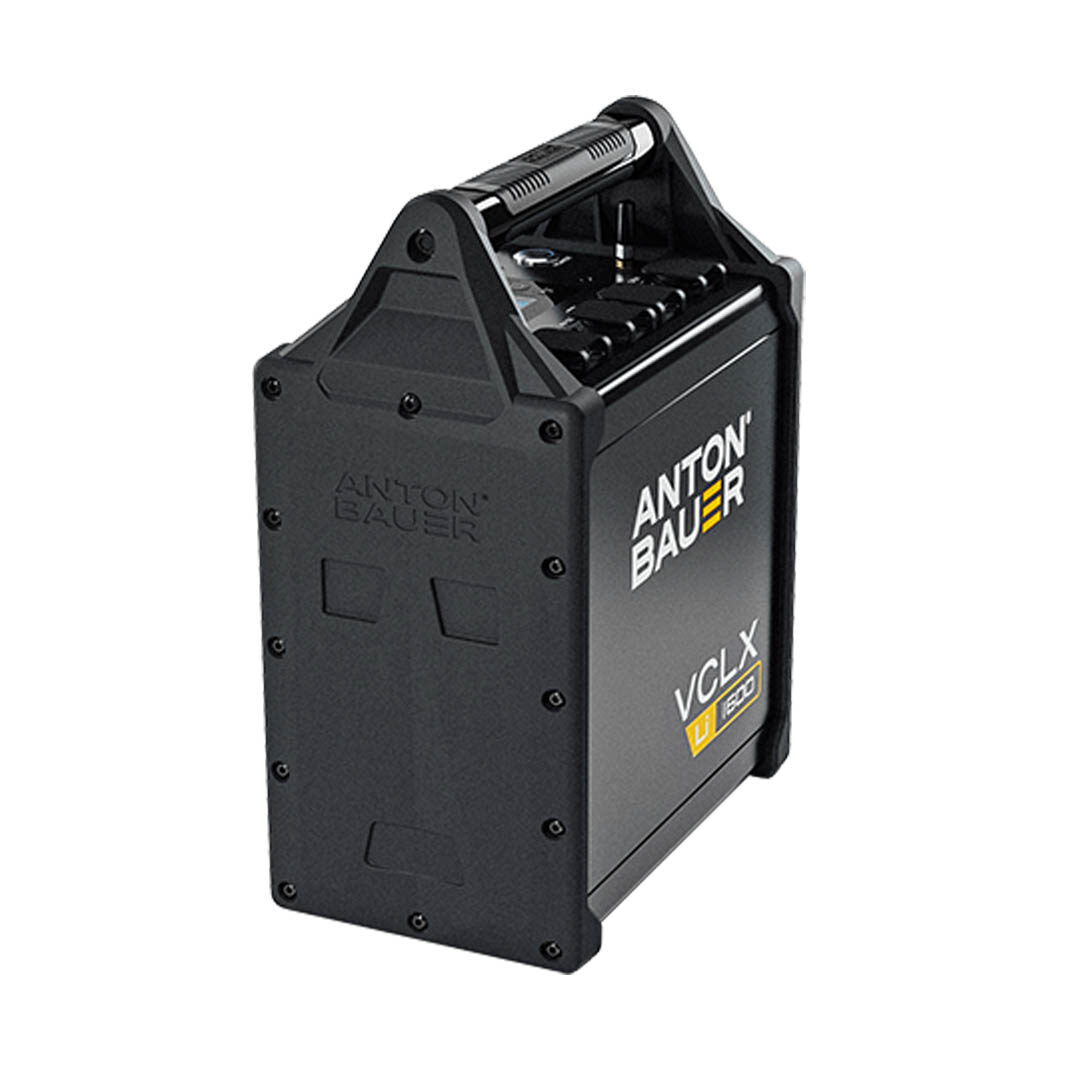

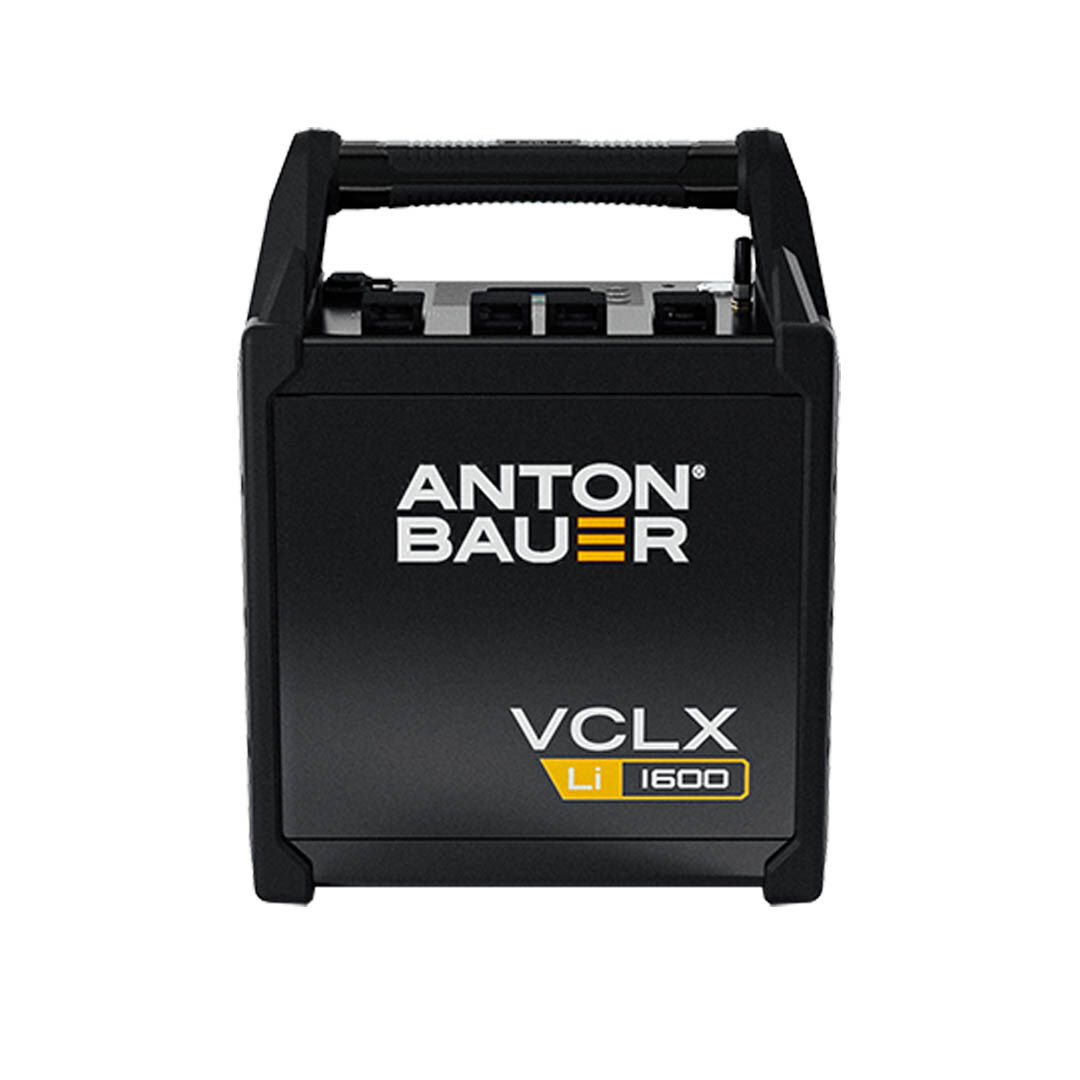

The Anton/Bauer VCLX LI is the ultimate portable power solution for off-grid productions. This robust floor battery boasts an impressive 1600Wh capacity, offering over twice the power of the VCLX NM2 while being lighter at just 25.5 lbs. It delivers multi-voltage output (14.4V, 28V, or 48V) from two XLR4 outputs and one XLR3, seamlessly powering cameras, monitors, and lighting equipment.
The VCLX LI features a 2.4″ LCD screen for real-time monitoring, smart electronic fuses, and built-in Wi-Fi for easy data management via the Anton/Bauer Fleet Management software. Designed with a durable, IP65-rated anodized aluminum chassis, it’s built to withstand demanding environments, making it the perfect power source for any production.
Overview
High Current Output
The VCLX LI delivers up to 24 amps from the 14.4-volt XLR4 outputs and 16 amps from the 28-volt or 48-volt XLR3 output, making it the perfect companion for high-draw lights and camera rigs.
Accurate Intelligence

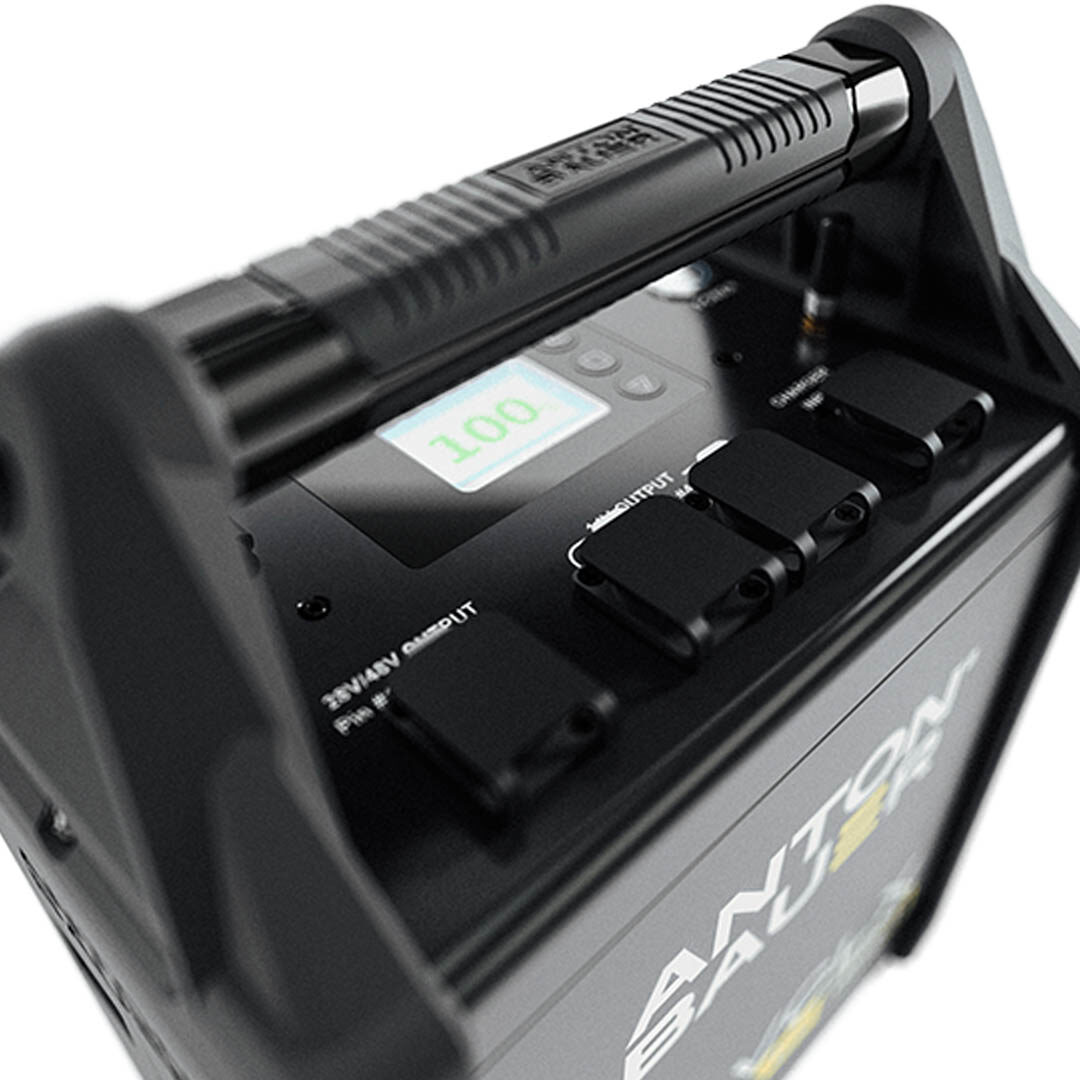

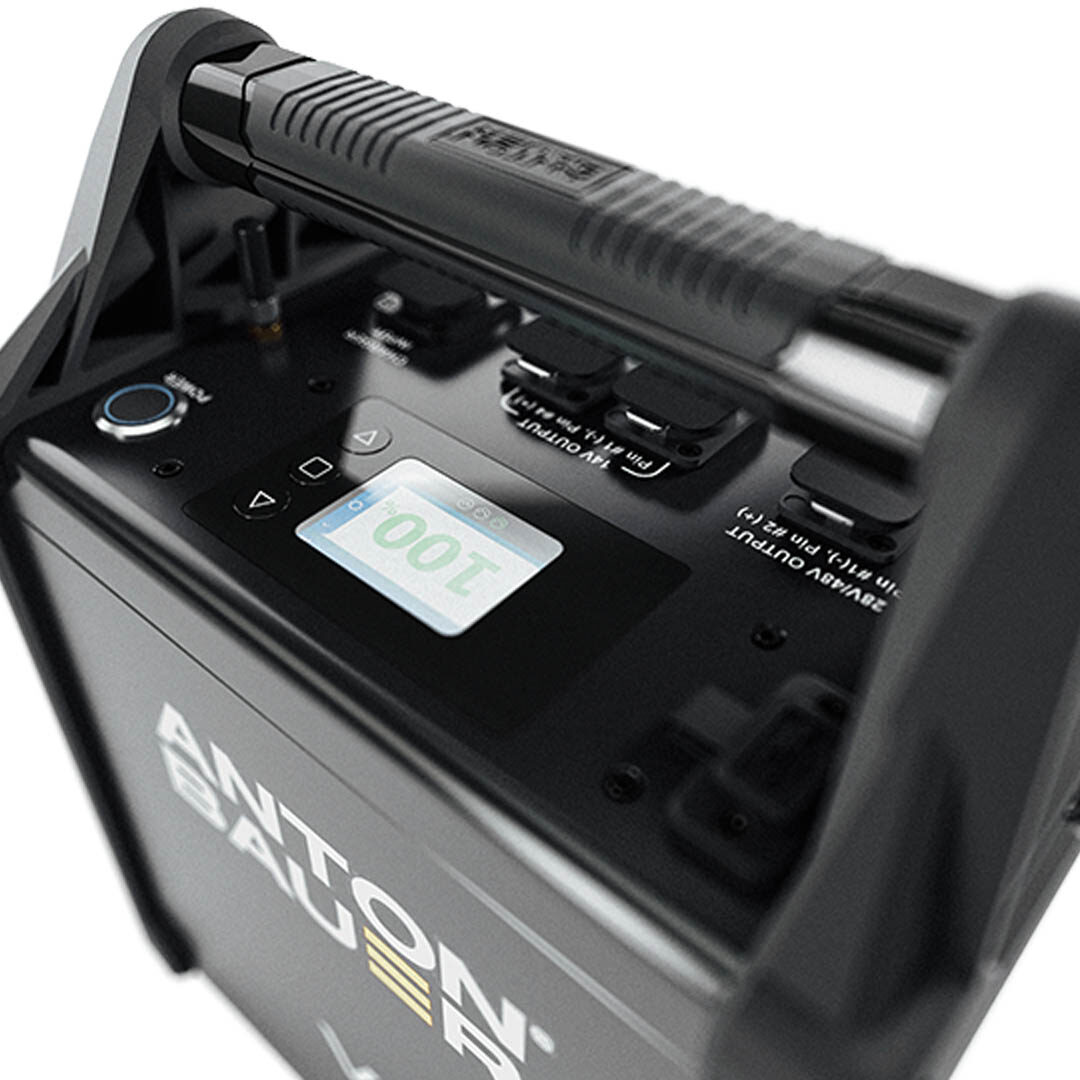

Monitor remaining runtime, charge time, or active power draw at a glance with the 2.4” color LCD screen. Perform real-time onboard diagnostics to keep your battery and equipment performing perfectly. Focus on the action on set while VCLX smart technology calculates everything being powered via XLR3, XLR4, or USB for maximum power efficiency.
Built Better

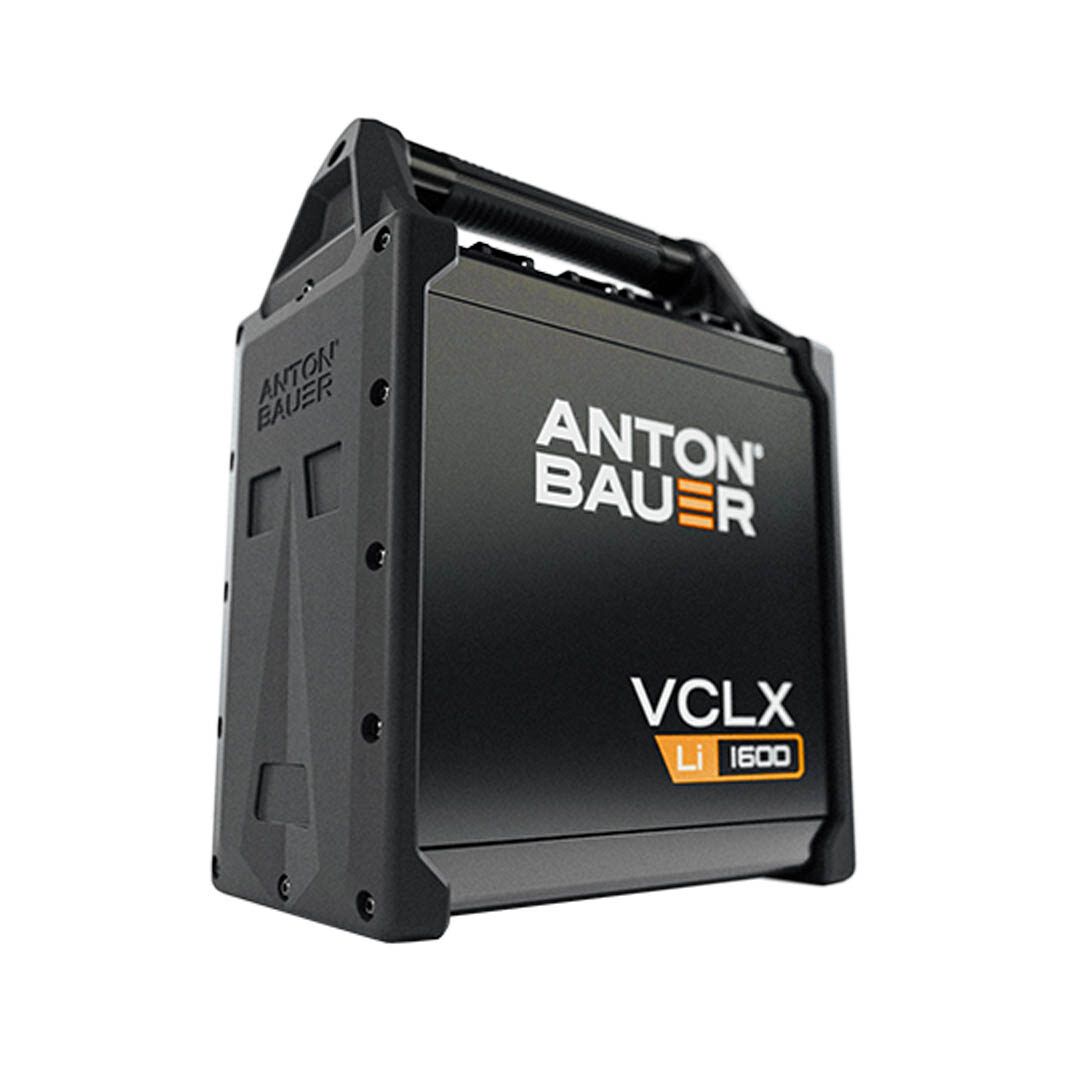

Rugged and reliable for perfect performance, the VCLX LI is designed to withstand the rigors of set life, grip trucks, and shipping cases. The portable power station is engineered from tough anodized aluminum with over-molded end caps and handle grips. Passive cooling ensures no fan noise on set, while its sealed, IP65-rated weatherproof case guarantees true go-anywhere power.
Safe & (no) Sound

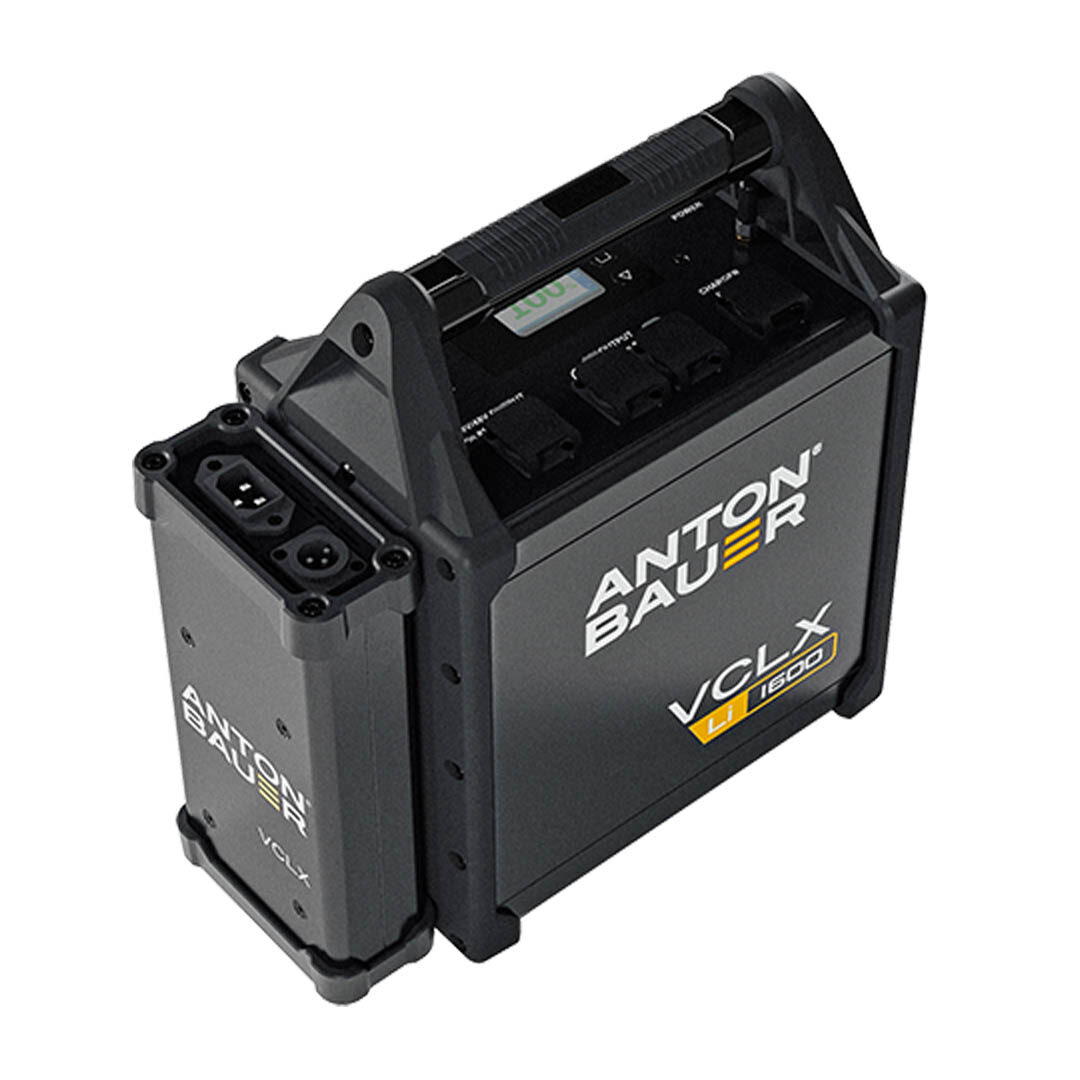

The VCLX LI is designed without internal chargers, minimizing heat buildup and extending the lifespan of the cells. No internal charger also means no noisy cooling fans or vents, ensuring silent operation. The VCLX 2 charger connects magnetically and uses an advanced charge algorithm to charge the unit from 0 to 100% in 8 hours. An external charger avoids the risk of a full unit failure due to a single component malfunction, maximizing your investment and keeping your equipment running smoothly.
Fleet Management
The VCLX LI comes with built-in fleet management, enabling you to download all vital information via Wi-Fi or USB instantly. Anton/Bauer’s fleet management software provides details on the learned capacity of the battery, the number of cycles it has run, the percentage charge, and any errors, clearly highlighted and time-stamped for quick triage and rectification. This ensures your fleet of VCLX units spends less time on the shelf and more time on set.
Technical Specifications
| Range | VCLXVCLX |
| Capacity | 1642 Wh1642 Wh |
| Chemistry | Lithium-ionLithium-ion |
| XLR Inputs | YesYes |
| WiFi Enabled | YesYes |
| Width | 25.5 cm10.04 in |
| Height | 33 cm12.99 in |
| Depth | 15.3 cm6.02 in |
| Weight | 11.56 kg25.49 lb |
| Warranty | 2 years2 years |
| LCD Display | Shows Runtime to the Minute remaing with load and time to full when charging, System and Fault InformationShows Runtime to the Minute remaing with load and time to full when charging, System and Fault Information |
| Battery Max Load | 850W850W |
In The Box
Anton/Bauer VCLX LI Battery
